ECH-INTF-32

ECH-INTF-32 Interface Module

B/S software architecture, unified management of all IP intercom & PA devices in one management software.

Main Features:

• ARM + DSP: Utilizes a high-speed industrial dual-core chip (ARM + DSP), achieving a startup time of less than 3 seconds.

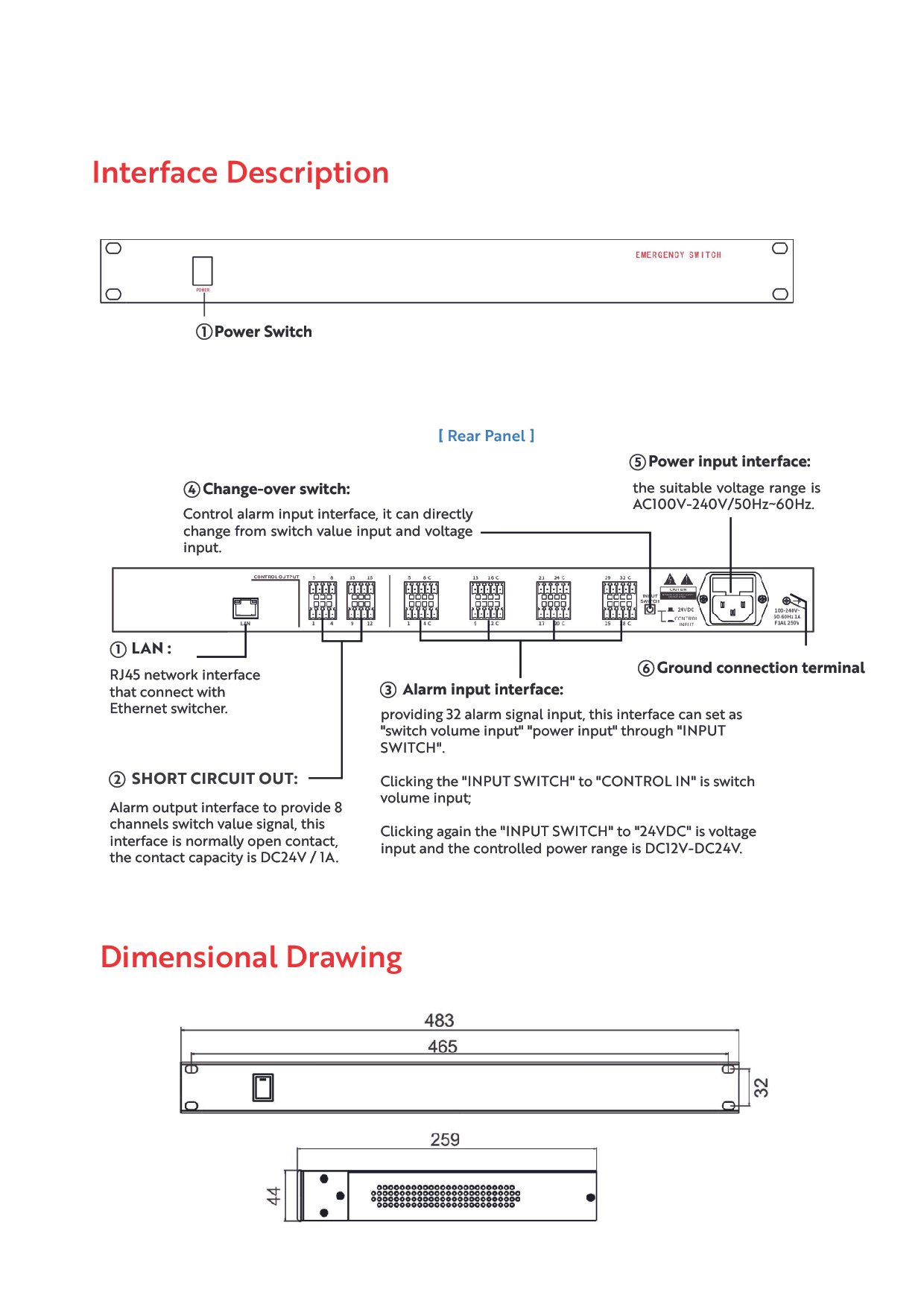

• Flexible Interface Expansion: Incorporates multiple IP network interface units for seamless expansion, featuring 32 alarm input interfaces and 8 short circuit output interfaces.
• Automated Alarm Handling: Automatically dispatches alarm information to the server for task execution, supporting alarms at the next layer and across all zones.
• Prestored Alarm Files: Alarm sound files are stored in advance on the server, ensuring readiness for the alert generator.
• Universal Connectivity: Operates anywhere with Ethernet availability, supporting cross network segment and routing capabilities.
